Multi-Round Sanitary Liquid Filter Housings are designed to meet requirements for sanitary construction with smooth crevice-free welding and TC-type sanitary connections. Easy to clean and disassemble. Suitable for higher flow rate applications with low-to-medium pressure conditions. This design is widely used in pharmaceutical, bio-technology, and food/beverage industries. The internal surface can be finely polished down to Ra≤0.3μm.

Features

• Ultra-high degree of polishing: Internal: Ra≤0.3μm
• External: Ra≤0.4μm
• Meets GMP standards with smooth crevice-free welding and sanitary design. Excellent cleanability & liquid drainage.
• Vent port feature: Tri-clamp connection for convenience.
• A strengthened closure clamp allows a maximum operating pressure of 1.0MPa.
• The faceplate can be made detachable for full-surface cleaning. Suitable for CIP and SIP processes.

Applications

• Pharmaceuticals: filtration of injectables, LVPs, water for injection, antibiotics, and other biological products.
• Food and beverage: filtration of beer, wine, distilled spirits, juices, syrups, and drinking water.
• Petrochemical industry: filtration of oilfield water, organic solvents, acids, and alkaline fluids.
• Microelectronics: pre-filtration of high-purity water

Surface Finish

Materials

Operating Conditions

Connection

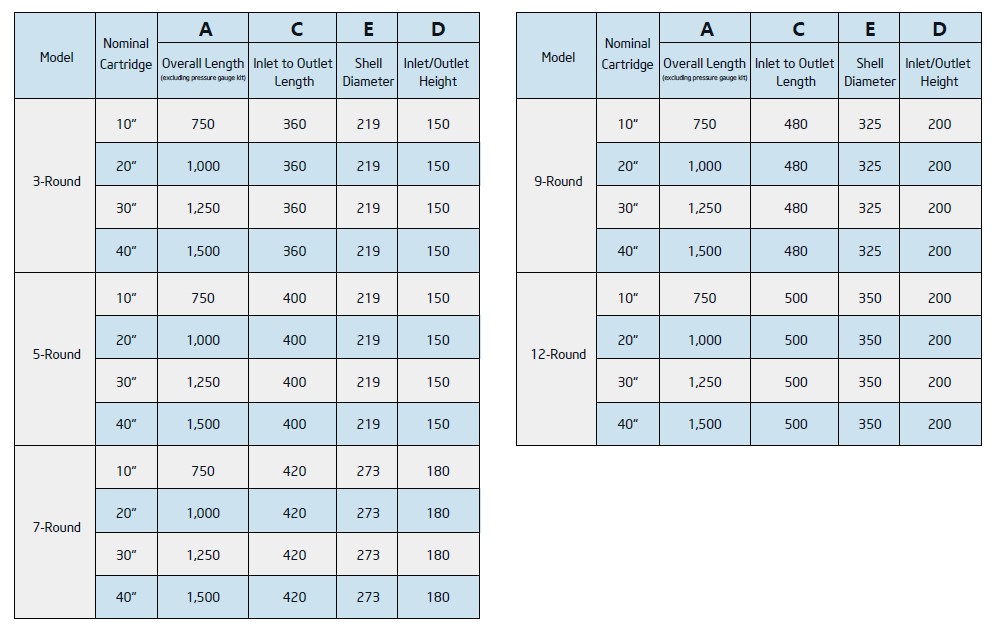

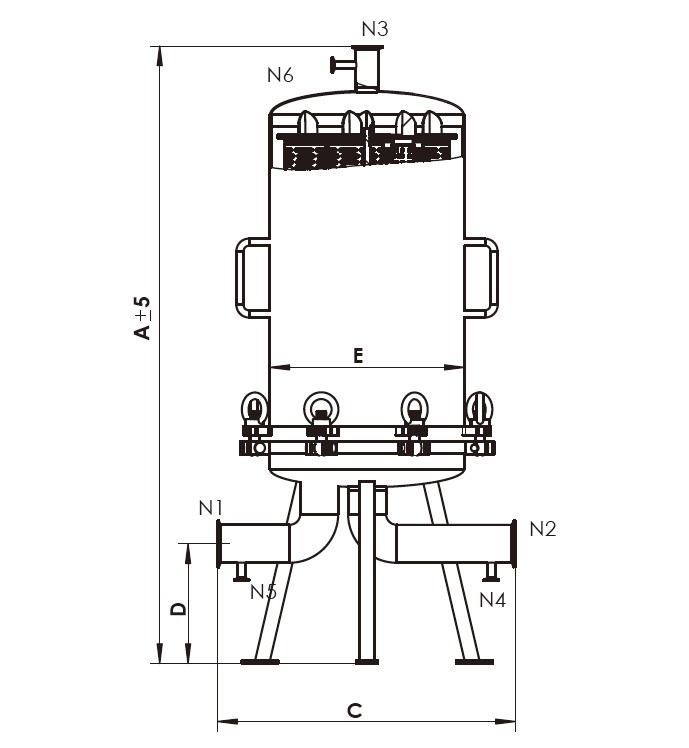

Drawing

Ordering Information
