N Series - Bag Filter Housings from Darlly Filtration are offered in a range of sizes and port options to meet your needs for liquid filtration. Our housings are fabricated using best-practice, industry leading production methods to deliver high quality and best value. These are an excellent choice for liquid filtration covering a wide range of applications: food and beverage, fine chemicals, process fluids. Our single-bag and multi-bag housings can be customized depending on the user’s specific needs.

Features

• Housings are designed with a sanitary housing style. Internal finish Ra＜0.6μm as preferred for potable water and food/beverage production.
• The three-point clamping closure ensures excellent sealing performance.
• The swingbolt closure with eyebolts allows for easy handling and servicing.
• Strengthened filter baskets are rugged and long-lasting.

Applications

• Pre-filtration of RO systems; Bottled water production
• Filtration of process water, condensate water, cooling water, & waste water
• Chemical industry filtration of acids, alkaline liquids, & organic solvents
• Energy industry condensate & cooling waters

Surface Finish

Materials

Operating Conditions

Connection

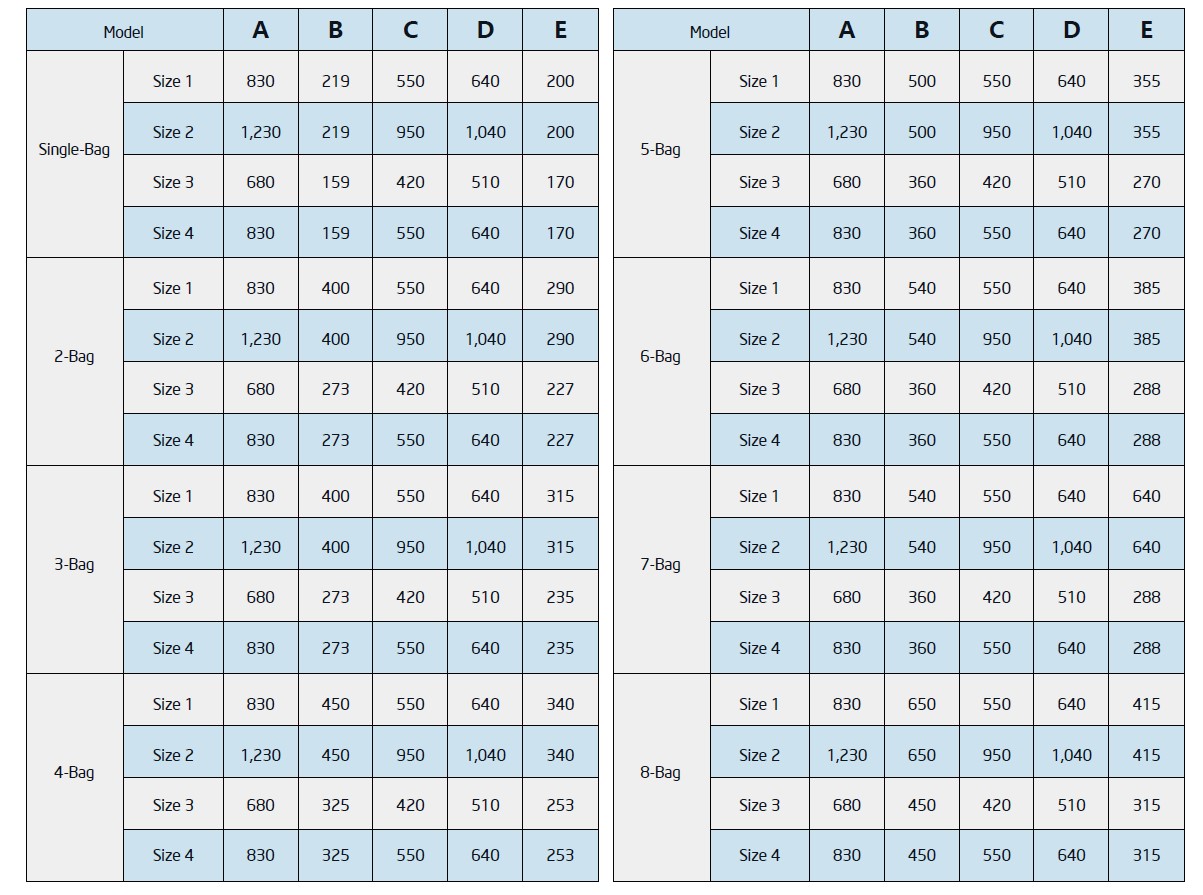

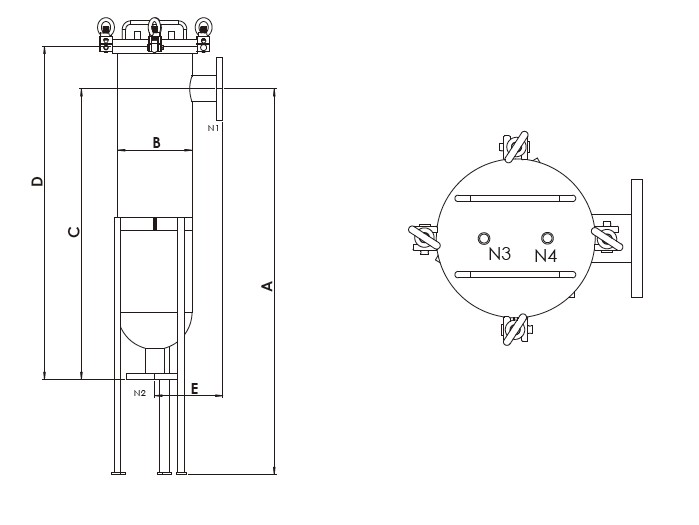

Drawing

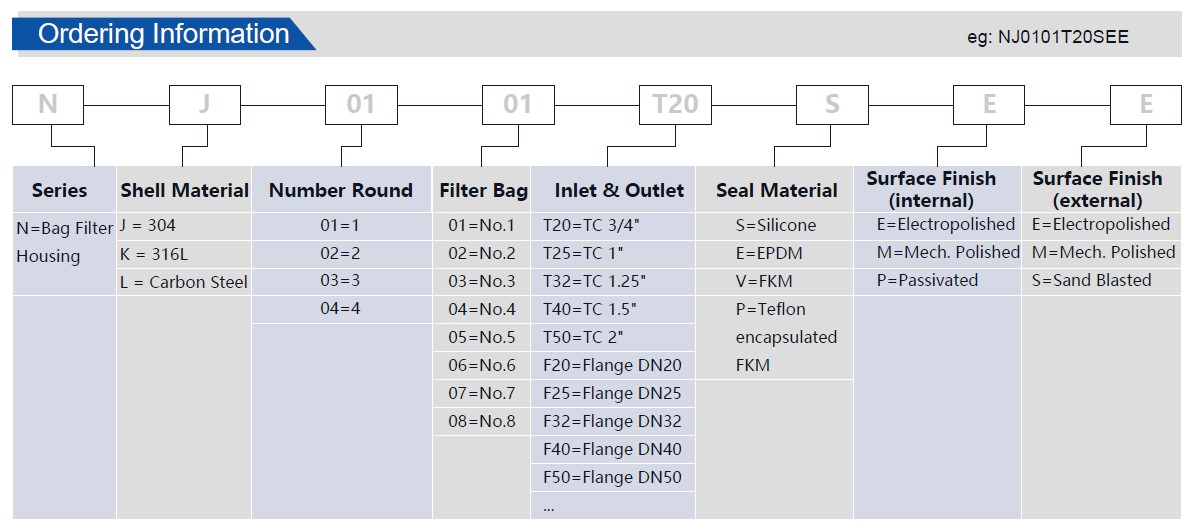

Ordering Information

catalog
