MiniFil-Junior? Cartridges

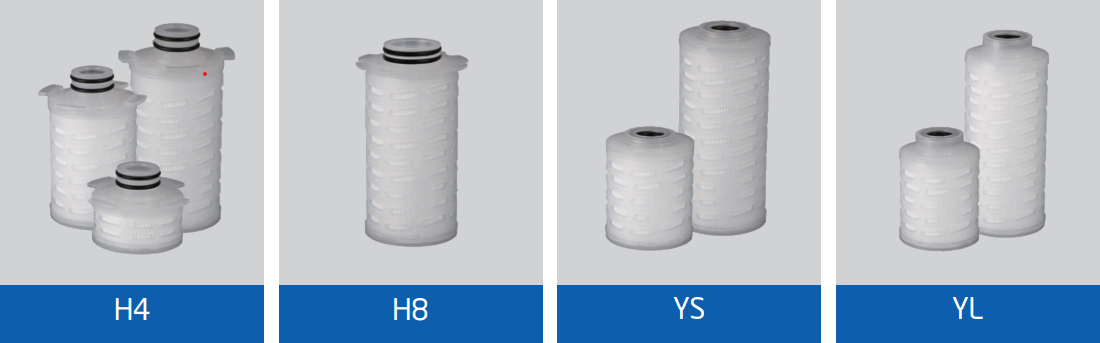

Darlly’s range of 56mm OD MiniFil-Junior? filter elements are offered in multiple grades of PES and PTFE membrane as well as absolute-rated pleated polypropylene depth media.

Learn More
HOME / APPLICATIONS / Laboratory / MiniFil-Junior? Cartridges



Darlly’s range of 56mm OD MiniFil-Junior™ filter elements are offered in multiple grades of PES and PTFE membrane as well as absolute-rated pleated polypropylene depth media.



Features


  • Polypropylene depth media option offers ratings from 0.2um to 70um with high capacity and low pressure drop
  • Hydrophilic PES and hydrophobic PTFE membranes available in ratings from 0.03 to 1 micron. Integrity testing assures consistent, highly retentive performance. High tolerance to repeated cleaning and steaming cycles
  • Products are manufactured in a controlled environment under a quality management system certified to ISO9001:2015






Applications


  • Small-Batch Pharmaceutical, Bio-Technology, and Ophthalmic Products
    • Bio-reduction and clarification of ingredients and final products
  • Semiconductor and Micro-Electronic fluids, fine chemicals
    • Cleaners, solvents, photoresist & developer solutions, & process chemicals
  • Pilot-Scale Investigations and R&D process development
    • Facilitates optimizations and scale-up






Material of Constructions




Filter Media

Polypropylene
PES
PTFE

Support Layers
Cage/Core/Adapters
O-ring Seals

Polypropylene
Polypropylene
Silicone
EPDM
Viton® FKM








Performance





Maximum
Differential
Pressure
5 bar @ 50°C forward
3 bar @ 90°C forward
0.3 bar @ 90°C reverse

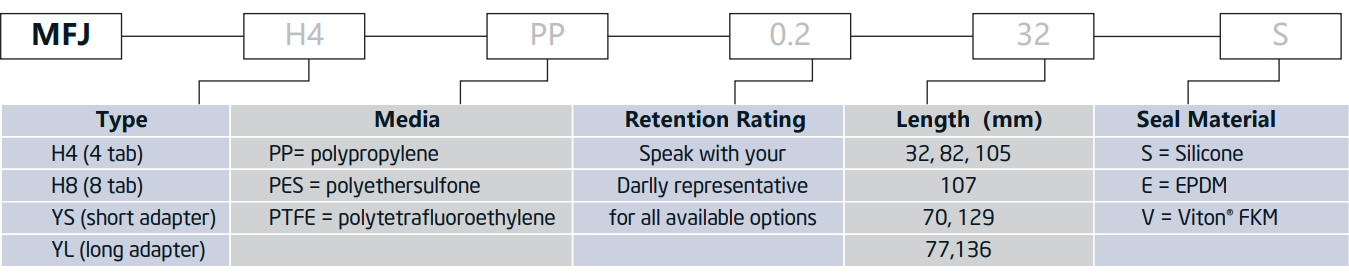

Order Information









 Download Catalog
