Y Series - Strainer Filter Housings
Y Series - Strainer Filter Housings are an indispensable treatment device in pipeline systems conveying fluids requiring filtration. These are often installed ahead of pressure reducing valves, relief valves, level control valves, and other equipment to b
Y Series - Strainer Filter Housings are an indispensable treatment device in pipeline systems conveying fluids requiring filtration. These are often installed ahead of pressure reducing valves, relief valves, level control valves, and other equipment to be protected from particulate debris. They can be applied to filtration of aqueous solutions, oils, and gases.
Features
- Approaches sanitary standards, with option for internal and external finish of Ra＜0.4μm.
- The compact design is easy to clean, install, service. Low flow resistance.
- Low pressure drop.
- With no dead space, allows for complete liquid drainage.
Applications
- Particle filtration of pipeline liquids and gases.
- Filtration of process water, condensate water, cooling water, waste water
- Filtration of food products, beverages, and edible oils.
Surface Finish
| Finish Process Options | Passivated Electropolished Mech. Polished |
| Polish Quality |
Internal: Ra ≤ 0.3μm External: Ra ≤ 0.4μm |

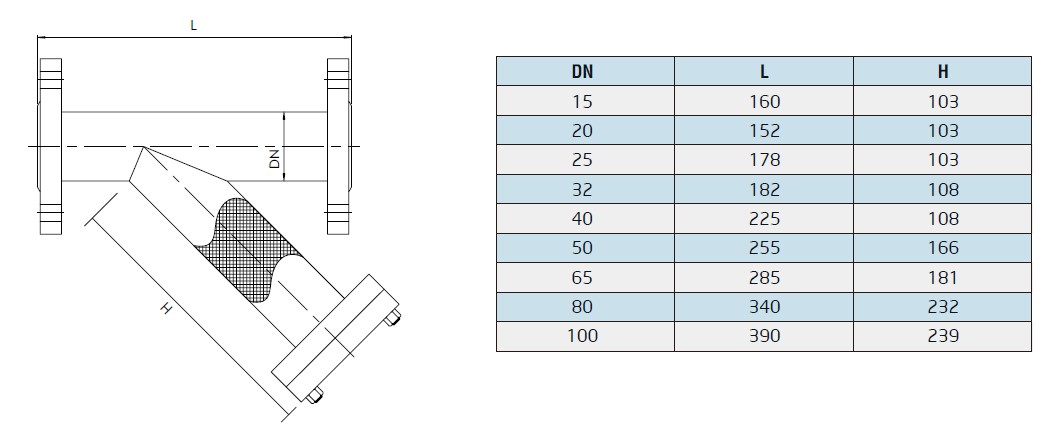

Dimensions (mm)

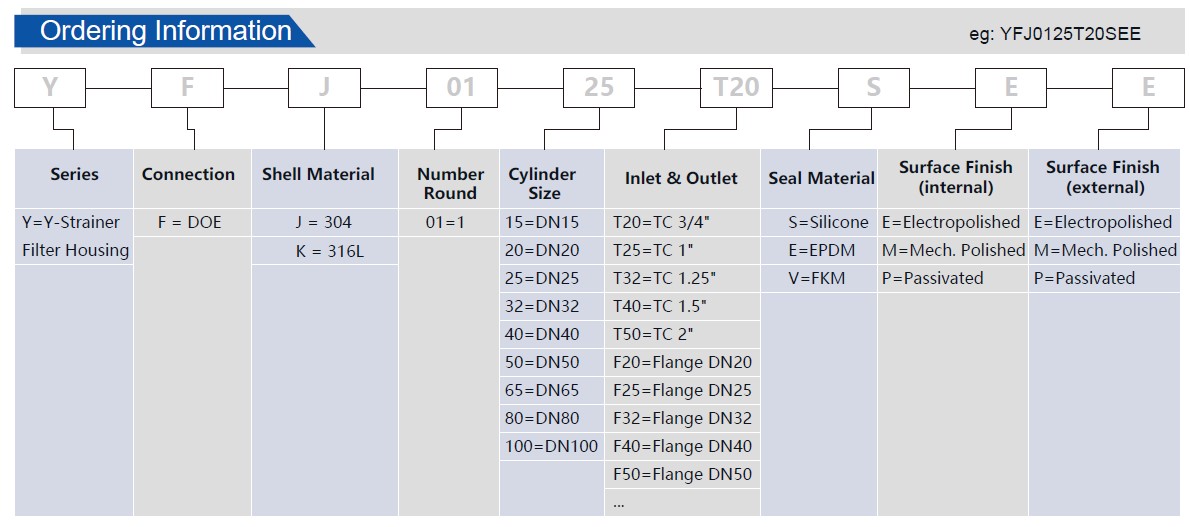

Ordering Information
catalog
