SAA Series - PS Pleated Filter Cartridge - Best Water Filter Cartridge

SAA Series PS Filter Cartridge is constructed of highly asymmetric hydrophilic Polysulfone membrane and polypropylene components. The unique PS membrane delivers high flow rate,long life time and excellent particle removal effciency. All the cartridges are made in the controlled cleanroom environment. The cartridges are indeally suited for filtration of the water based fluids.

Features

• Highly asymmetric polysulfone membrane provides excellent dirt holding capacity and flow characteristics
• Hydrophilic polysulfone membrane eliminates the need for prewetting and flushing
• Asymmetric membrane structure provides high flow rates with lower differential pressure and a longer life time
• Widely compatible with cleaning applications in many processes such as developing, etching and stripping processes
• Manufactured in controlled cleanroom environment

Applications

• General-Use water Filtration
• Deionized water systems
• Liquid clarification
• Chemical filtration
• Ulta-Pure water systems

Material of Constructions

Media

Support

Cage/Core/End Cap

Sealing

Highly Asymmetric Hydrophilic

PS Membrane
Polypropylene (PP)
Polypropylene (PP)
EPDM, Viton®
, E-FKM

Dimension

Diameter

Length

69mm

5”, 10”, 20”, 30”, 40”

Quality


Filter Cartridges are manufacturered in a clean room environment Manufacturered according to ISO9001:2015 certified Quality Management System 100% integrity test

Food Contact Compliance


· Material of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR. · Filter cartridges passed European Commission Directives (EU10/2011) · Halal Certified

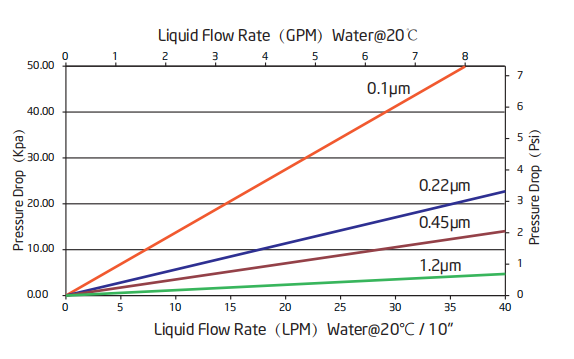

Performance


Max. Operating Temperature Max. Operating DP	80℃ 4 Bar@21℃ , 2.4 Bar@80℃

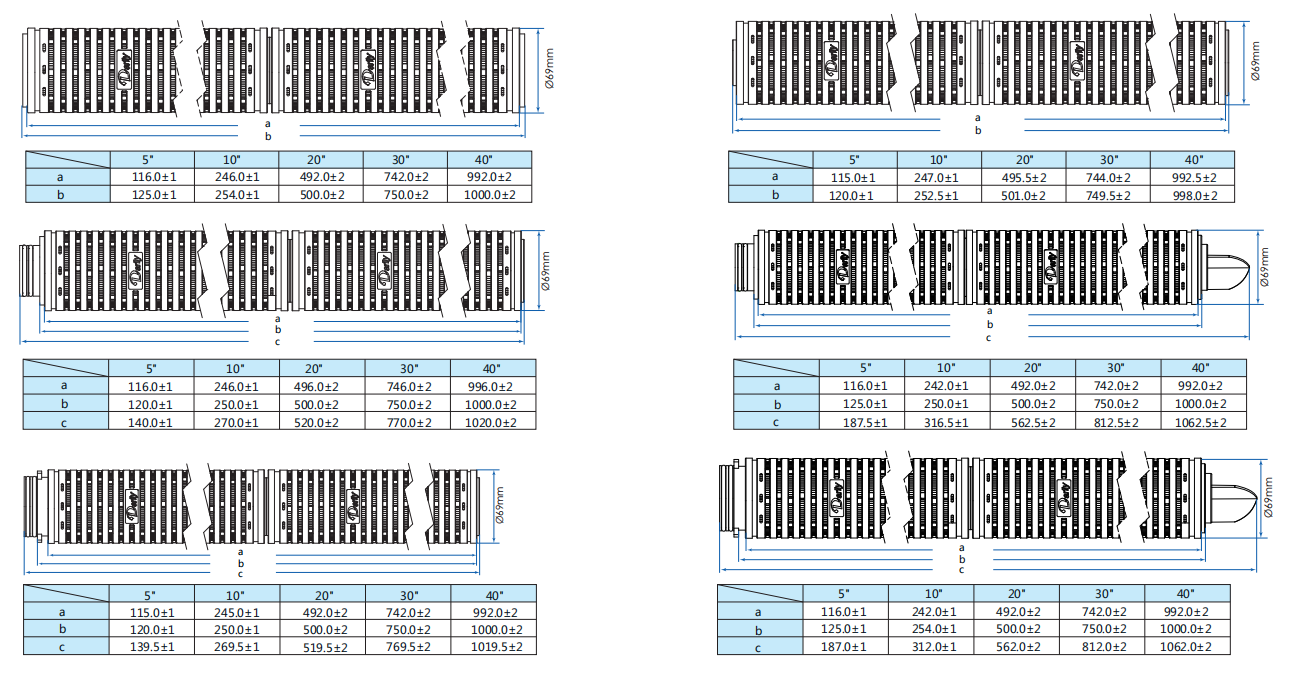

Dimensions
