STB Series - Pleated Polyester Filter Cartridges - Best Water Filter Cartridge

Darlly STB Series Pleated Polyester Depth Media Filter Cartridges offer an efficient and economical filtration option with broad applications. The all-polyester construction allows higher temperature use (up to 120℃). The 2.6" or 2.7" OD allows use in housings where larger cartridges do not fit. Manufactured in a clean room environment to maintain high standards of purity and cleanliness.

Features

•Increased surface area due to pleated design High
•temperature resistance
•High flow rate and low pressure drop

Applications

•Process Water
•Solvents
•Fine chemicals
•Plating Chemicals
•Wastewater
•Produced water
•Hydrocarbons
•Synthetic Lubricants

Dimension


Diameter	66mm(Netting), 69mm(Cage)
Length	10”, 20”, 30”, 40”

Material of Constructions

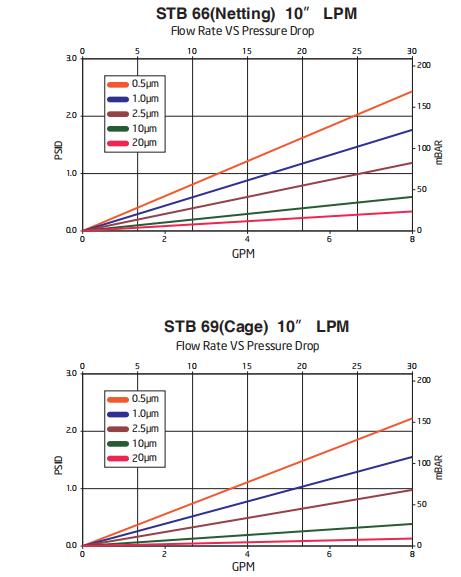

Performance


Operating Conditions
Max. Operating Temperature	120℃
Max. Operating DP	4 Bar@21℃

Draw

Ordering Information
